Product profile

single display | industrial motherboard | memory 2G | storage 8G | beidou school time | network school | room synchronization effect | positive timing | countdown | support environment detection | support infrared temperature array | IP audio broadcast | information release | remote control | automatic timing switch

Display features

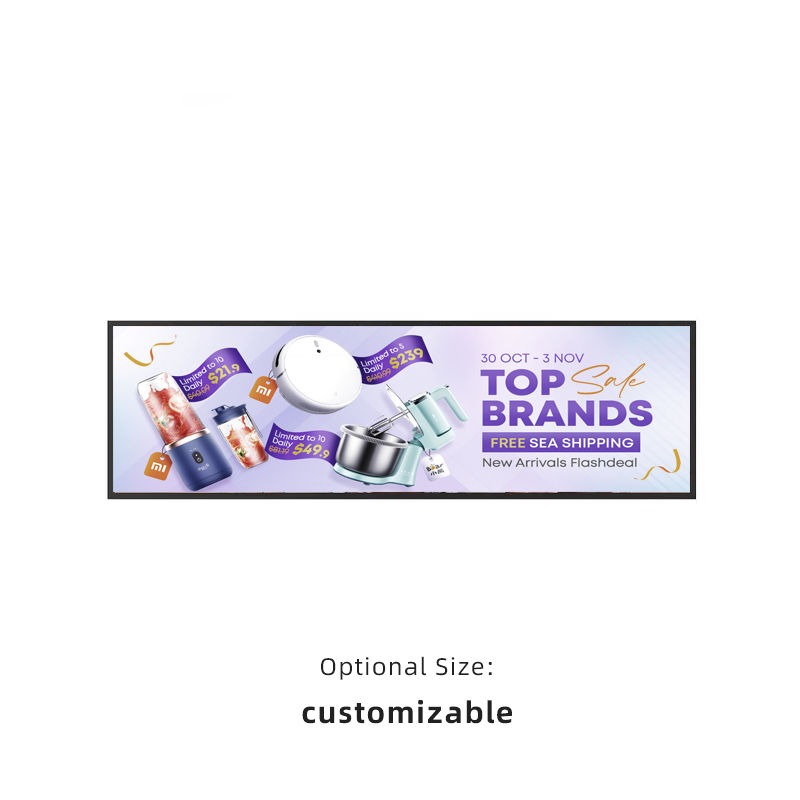

1. Screen size: 24 inches / 31 inches / 40.5 inches / 50 inches / 60 inches

2. System: Android

3.CPU: Eight-core, main frequency: 2.0GHz

4. Memory: 2G

5. Built-in memory: 8G

6. Network support: Ethernet, WiFi, Bluetooth, wireless peripheral extension, 3 / 4G

7.HDMIOUT: 1, USB: 2, network port: 1, TF card slot: 1

8. Point spacing: P1.9mm

9. Resolution: 384 px * 64 px

10. Continuous working hours: 724 hrs

11. Average fault-free working time: 10,000 hours

12. Built-in speaker: 8 Ω 3W * 2

13. Shell material: metal shell

14. Support multilingual: English, Chinese and other OSD;

15. Support permanent power failure memory function, and automatically report data when connected to the Internet

16. Support remote switch, support timing switch and support to set multiple time periods;

17. Support remote upgrade application software, support remote upgrade system firmware;

18. Support environment monitoring function; change USBOTG interface host / device switch, Recovery, OTA upgrade, switch network ADB, obtain cmdline, directly start application, GPIO control, hardware watchdog control, serial port control, etc., to facilitate secondary development.
